Pose Tracking

MGT-python's pose story spans two complementary layers:

• MgVideo.pose() — the rendering-oriented pipeline: overlaid skeleton video, an average-pose image, a marker-trajectories image, and a keypoint data file (CSV/TSV/TXT/C3D). See the Video Analysis page for the full method reference, including pose_waterfall(), pose_segments(), pose_center() and pose_distance().
• The array-level pose toolkit (_posetools, _qom, _mocap) — plain numpy trajectories and derived motion signals for batch processing, event detection, and cross-modality validation, with no video rendering involved.

This page walks through both, end to end: installing the optional dependency, rendering a pose video, extracting landmark trajectories in bulk, computing derived signals (speed, impacts, quantity of motion), and validating a video-derived pose signal against motion-capture ground truth.

---

Installing the [pose] extra

The default pose backend (MediaPipe) is an optional dependency:

pip install musicalgestures[pose]

This pulls in mediapipe>=0.10. Without it, MgVideo.pose() still works — it falls back to the always-available OpenPose body_25 backend (Caffe weights, ~200 MB, auto-downloaded on first use) — but the array-level extract_pose_landmarks() requires MediaPipe and raises ImportError if it's missing.

MediaPipe has two API families — both are supported

MediaPipe's Python API changed generations mid-stream:

• The legacy Solutions API (mp.solutions.pose.Pose) — present in wheels up to roughly mediapipe==0.10.14.
• The newer Tasks API (PoseLandmarker, mp.tasks.vision) — the only option in newer 0.10.x wheels (e.g. 0.10.35), which dropped mp.solutions entirely.

extract_pose_landmarks() detects which family is available at runtime (hasattr(mp, "solutions")) and uses whichever is present, so it works across the whole mediapipe>=0.10 range without pinning a version. MgVideo.pose(model='mediapipe') and the per-frame MediaPipePoseEstimator always use the Tasks API.

With the Tasks API, the pose-landmarker model is a .task file (~8–28 MB depending on model_complexity: lite/full/heavy) downloaded from Google's model storage on first use and cached in musicalgestures/models/, shared by MgVideo.pose() and extract_pose_landmarks() alike. Subsequent calls reuse the cached file — no repeat download.

---

Rendering with MgVideo.pose()

pose() runs skeleton estimation frame by frame and renders an overlaid video plus summary images:

import musicalgestures as mg

mv = mg.MgVideo('dance.avi')

pose_video = mv.pose()                 # MediaPipe by default, GPU delegate if available
pose_video.show()

# style / appearance
mv.pose(style='markers', overlay=False)          # keypoints only, no video underneath
mv.pose(style='skeleton')                        # joint lines only
mv.pose(overlay=False, background='white')       # print-friendly, black skeleton on white
mv.pose(marker_history=10)                        # fading motion trail per marker

# data export
mv.pose(data_format=['csv', 'c3d'])               # also write a .c3d mocap file

Key parameters (see the full signature for everything):

• model — 'mediapipe' (default, 33 landmarks with depth + visibility) or an OpenPose variant ('body_25', 'coco', 'mpi').
• device — 'cpu' or 'gpu'. For MediaPipe this selects the inference delegate (GPU falls back to CPU automatically if unavailable). For OpenPose, GPU needs a CUDA-enabled OpenCV build.
• threshold — normalized confidence below which a keypoint is discarded (substituted with (0, 0)). Defaults to 0.1.
• use_cache — when True (default), a second pose() call with the same model/threshold reuses the already-computed keypoints to re-render a different style/overlay/background without re-running inference:

mv.pose(style='markers')      # runs inference, caches keypoints
mv.pose(style='skeleton')     # reuses cache — near-instant, no re-inference

• save_average_pose / save_trajectories — also render an average-pose image (markers coloured by normalised quantity of motion, labelled with dominant frequency) and a marker-trajectories image, each with a companion stats CSV. Both default to True.

If MediaPipe isn't installed and model='mediapipe' (the default) is requested, pose() prints a notice and transparently falls back to the OpenPose body_25 backend.

---

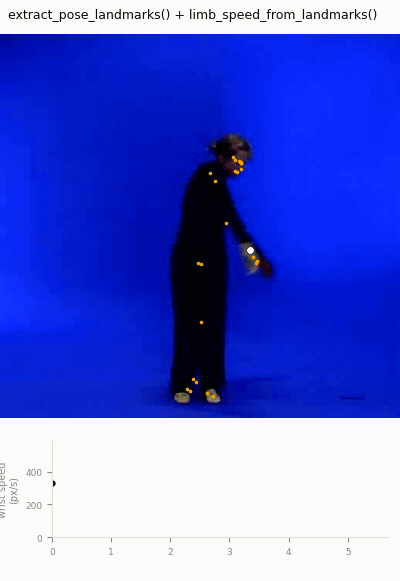

Batch landmark-trajectory extraction with extract_pose_landmarks

For downstream numeric analysis (quantity of motion, event detection, cross-modal alignment) rather than a rendered video, use the array-level extract_pose_landmarks(). It decodes the video through an FFmpeg raw-video pipe (optionally resampled/resized first), runs MediaPipe Pose per frame, and returns tidy numpy trajectories — no OpenCV frame-accurate conversion, no video output.

from musicalgestures import extract_pose_landmarks

traj = extract_pose_landmarks(
    'strike.mp4',
    fps=30,               # resample to 30 fps before inference (None = native)
    width=640,             # resize analysis frames to 640 px wide (None = native)
    model_complexity=1,    # 0=lite, 1=full, 2=heavy
    world_landmarks=False, # set True to also collect 3D world landmarks (metres)
    target_name='strike_pose.csv',   # optional: also write a tidy CSV
)

traj['landmarks']        # (F, 33, 3) — per-frame (x_px, y_px, visibility)
traj['detected']         # (F,) bool — per-frame detection flag
traj['detection_rate']   # fraction of frames with a detected pose
traj['fps'], traj['width'], traj['height']
traj['names']            # the 33 MediaPipe landmark names, row order of the landmark axis

NaN/dropout semantics: on any frame where MediaPipe doesn't detect a pose, the corresponding row of traj['landmarks'] (and traj['world'], if requested) is filled with NaN across all 33 landmarks and 3 channels, rather than zeros or a dropped row — every frame index still has a timestamp in traj['time'], so downstream signals stay aligned in time even across dropouts. The derived-signal helpers below are NaN-aware and propagate these gaps rather than silently treating them as valid zero-motion samples.

Detection-rate reporting: with verbose=True (the default), each call prints a one-line summary, e.g.:

strike.mp4: 900 frames at 30 fps (640x360), pose detected in 97% of frames.

traj['detection_rate'] carries the same number for programmatic use (e.g. flagging low-quality takes before running further analysis).

Only extract_pose_landmarks() needs MediaPipe; it's imported lazily, so importing musicalgestures and using the numpy-only derived-signal helpers below works even without MediaPipe installed.

---

Derived signals

Once you have landmark trajectories — from extract_pose_landmarks(), MgVideo.pose()'s saved CSV, or any other source (OpenPose, YOLO-pose, motion capture) — a small set of numpy-only functions turn them into motion signals and events.

midpoint — a proxy point between two landmarks

from musicalgestures import midpoint

shoulders = midpoint(traj['landmarks'][:, 11, :2], traj['landmarks'][:, 12, :2])  # (F, 2)

Element-wise midpoint of two trajectories (typically the shoulder midpoint, landmarks 11/12, as an upper-torso proxy). NaNs propagate: the midpoint is NaN wherever either input is NaN.

limb_speed_from_landmarks — confidence-gated speed, with a timing caveat

from musicalgestures import limb_speed_from_landmarks

wrists = traj['landmarks'][:, [15, 16], :2]   # left/right wrist, px
conf = traj['landmarks'][:, [15, 16], 2]      # MediaPipe visibility

speed = limb_speed_from_landmarks(wrists, conf, traj['fps'], conf_gate=0.5, merge='max_lr')
# speed: (F,) px/s — bilateral max of left/right wrist speed, lightly smoothed

Frames whose landmark confidence falls below conf_gate are masked to NaN before differentiation; the per-limb speed is the central-difference magnitude of the pixel path (px/s); candidate limbs (e.g. left/right wrist) are merged by element-wise maximum (merge='max_lr') so motion of either limb registers; the result is then lightly smoothed with a short NaN-aware moving average (smooth_taps=3 by default).

Speed precedes contact

A limb-speed peak marks the moment of maximum downstroke speed, not the moment of contact/arrest. Physically, a striking limb decelerates sharply at impact, so the speed peak — and any peak-picker run on this signal — systematically occurs slightly before the actual contact event that an audio onset or an acceleration peak would register. Account for this bias when comparing event times derived from limb_speed_from_landmarks() against other modalities (audio onsets, impact_events() on acceleration, motion capture). This is also a single-camera 2D signal: motion toward/away from the lens is foreshortened, so pixel speed is not metric speed.

Peak-picking on the returned signal is left to the caller — MGT-python's general adaptive peak-picker pick_peaks (_peaks module, see the Sound–Movement Analysis Toolkit page) is a good default.

impact_events — candidate impacts from acceleration peaks

from musicalgestures import impact_events

impacts = impact_events(wrists, traj['fps'], rel_thresh=0.12, min_interval_s=0.10)
impacts['time']        # impact times (s)
impacts['magnitude']   # merged acceleration magnitude at each impact
impacts['accel']       # the full merged acceleration-magnitude signal, for plotting

Each candidate point (e.g. the two wrist landmarks) is double-differentiated (central differences) to acceleration, merged by element-wise maximum across points, and peak-picked with a relative threshold (rel_thresh × the signal's max) and a minimum inter-impact interval (min_interval_s). Because double-differentiation is noisy and also responds to the backswing — not only the collision — treat the results as candidate impacts and validate against another modality (e.g. audio onsets, or the mocap comparison workflow below) where possible. For whole-image visual impact detection from video with no landmarks at all, use MgVideo.impacts() instead.

pose_qom / body_scale — quantity of motion, normalised for framing

from musicalgestures import pose_qom, body_scale, normalized_qom

qom, speed, fs_out = pose_qom(traj['landmarks'][..., :2], traj['fps'])
# qom: scalar mean speed (px/s), band-limited to 0.3-5 Hz (landmark jitter dominates above that)
# speed: the per-frame envelope, at fs_out Hz

scale = body_scale(traj['landmarks'][..., :2])   # median torso length (shoulders->hips), px

# or in one call, dividing qom/speed by body_scale automatically:
qom_norm, speed_norm, fs_out = normalized_qom(traj['landmarks'][..., :2], traj['fps'])
print(f"{qom_norm:.3f} body-lengths/s")   # dimensionless -- comparable across framing/zoom

pose_qom() is a thin wrapper around the general group_qom() (any group of marker/landmark trajectories, mocap included), band-limited to 0.3–5 Hz for image-space pose data. body_scale() computes the median torso length — the distance between the shoulder midpoint (landmarks 11/12 by default) and the hip midpoint (23/24) — preferred over shoulder width because it stays robust in profile view. normalized_qom() divides the pose QoM by body_scale(), producing a dimensionless body-lengths-per-second figure that's invariant to camera framing and zoom, so it's comparable across recordings and cameras (used in the Westney study's with/without-audience piano comparison).

---

Validating video-derived pose against motion capture

For quality assurance — or when both a video and a synchronised motion-capture recording exist — _mocap provides a reader for Qualisys Track Manager (QTM) exports and a correlation check against any other motion envelope, e.g. one derived from extract_pose_landmarks().

from musicalgestures import (
    extract_pose_landmarks, pose_qom,
    read_qtm_tsv, group_qom, compare_modality_envelopes,
)

# 1. Video-derived pose envelope
traj = extract_pose_landmarks('take01.mp4', fps=30, width=640)
wrist = traj['landmarks'][:, 16, :2]                      # right wrist, px
qom_video, speed_video, fs_video = pose_qom(wrist, traj['fps'])

# 2. Motion-capture envelope, same body part
marker_names, mocap_data, fs_mocap = read_qtm_tsv('take01.tsv')
i = marker_names.index('RWrist')
speed_mocap, fs_mocap_out = group_qom(mocap_data[:, [i], :], fs_mocap)[1:]

# 3. Compare the two envelopes
result = compare_modality_envelopes(speed_video, speed_mocap, fs_video, fs_mocap_out)
print(f"video vs. mocap agreement: r={result['r']:.2f} over {result['n']} s")

read_qtm_tsv(path) returns (marker_names, data, fs): data has shape (T, M, 3), with Qualisys's exact-zero gap fills converted to NaN, marker names recovered from the MARKER_NAMES header row, and a UTF-8 → latin-1 encoding fallback. compare_modality_envelopes deliberately takes precomputed 1-D envelopes rather than computing quantity-of-motion itself — resampling both to a common one-sample-per-second grid, then returning their Pearson correlation (r) and the number of overlapping seconds (n); r is NaN if fewer than three seconds overlap or either envelope is constant. Because the per-second binning uses an integer-rounded step, non-integer frame rates (e.g. 29.97 fps) drift slightly over long signals — treat this as a validation check, not a precise-alignment tool.

---

Next steps

• Video Analysis — full MgVideo.pose() reference, plus pose_waterfall(), pose_segments(), pose_center(), pose_distance()
• Sound–Movement Analysis Toolkit — the wider array-level toolkit (_qom, _peaks, _alignment, _posture, ...) that the derived-signal functions here belong to
• API Reference — complete function signatures
