Pose timeline

Postures and trajectories over time, flat enough to read at a glance. Three views of one pose pipeline, behind one function.

import musicalgestures as mg

video = mg.MgVideo("session.mp4")
video.pose_timeline(view='strip', trajectories='traces')   # postures, each with a history
video.pose_timeline(view='room')                           # skeletons where they stood
video.pose_timeline(view='bands')                          # an hour compressed to a strip

The three views

strip—postures at regular instants, each centred and scaled so two can be compared even if the dancer was at different distances, with the body's path underneath.

The bundled dancer.avi as a strip: twelve postures, one glance.

room—skeletons at their true positions in the frame, with the route drawn over them and a dot where each drawn posture stands. Moments are chosen for spatial separation, using the same reasoning as multishot: evenly spaced ones land on top of each other. This view earns its keep only when the dancer travels—on a recording made on one spot the skeletons pile up where the dancer stands, and strip is the view to reach for.

bands—one row per region of the body, carrying its joint angles over time. Dark is folded, bright is extended, and a held posture is a flat band—which is what posegram cannot show, since it carries landmark speed and a held limb has none.

Rows read down the body: head, torso, arms, hands, legs. posegram was reordered to match, so the two can be read row for row.

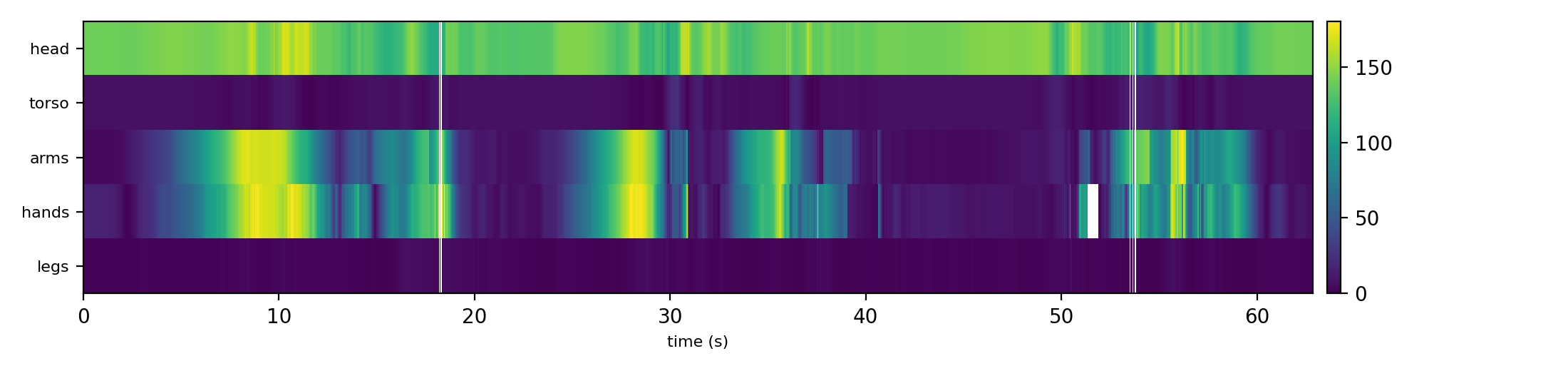

The same recording as bands: the arm and hand rows carry the dance, the legs hold still, and the white columns are frames the detector missed—gaps stay gaps.

Trajectories on the strip

trajectories=	what it draws
'traces'	every landmark, as fading ghost skeletons behind each posture
'connect'	head, pelvis and feet threaded through the postures, lane to lane
'path'	the room route across the lanes—a schematic, see below
None	postures alone

traces is usually the one you want. The fade is the information: a history at constant alpha says a limb was in several places without saying which it reached last. It also keeps density local to each figure, so a busy passage reads as a busy figure rather than as a scribble across the whole strip—which is what a single line through a fast section becomes.

connect follows averaged groups, in room space. Head, pelvis and feet together carry what a body does vertically; one landmark cannot. They are averages of several landmarks, which is steadier than any one. Note that in the strip's body space the pelvis is the origin by construction—normalise_poses centres on it—so following it there draws a dead straight line whatever the dancer did. Stability of that kind lives in room coordinates.

The spatial lines have a limit that no setting fixes. They are smoothed harder than the traces—smooth_spatial defaults to 45 frames against the traces' 9—because they carry carriage rather than gesture. That works where the body has a stable carriage: standing, walking, slow phrases. In floor work the head and pelvis genuinely swing through large arcs many times, and a filter wide enough to calm the lines there is wide enough to eat the arcs everywhere. Use 'temporal' for fast passages; its density stays local to each figure instead of crossing the whole strip.

Note also that a smoothing window wider than the gap between two postures flattens that segment to a constant, so a short recording sampled many times wants smooth_spatial lowered along with n_samples.

path is a schematic and is drawn as one. Normalising the postures is what removed their translation, so a room route cannot be to scale in that space.

What is deliberately absent

Colour. The skeletons are black. A ramp across the strip says only "this one came later", which the left-to-right order already says, and it costs contrast: a pale figure at the end is harder to read than a black one, and its ghosts nearly invisible.

Titles and captions. The only text is the time axis and its unit—time (s) when a time base is available, time (frames) when it is not, because 175 is a different claim in each and nothing else on the figure says which. Everything a caption would say belongs in the caption of whatever the figure goes into; a plot carrying its own explanation cannot be put beside another one.

What it cannot do

Gaps stay gaps. Frames the detector missed are not interpolated—filling them would invent posture. In bands they are the white columns that show how much of a row is actually measured.

It is downstream of the pose detector, which on a dance corpus finds a body in 99 to 100 per cent of frames, including on a dark costume against a black curtain. What it loses is individual landmarks—the wrists most often—and a row that needs one is a gap wherever it is missing.

It assumes a performer who moves. On a seated musician the postures are nearly identical and the strip says little that a single frame would not.

Postures and trajectories over time, flat enough to read at a glance.

Three views of one pose pipeline, behind one function:

• strip --- postures at regular instants, each normalised into its own cell, with the body's path drawn underneath. What the body looked like, at times you can point at.
• room --- skeletons at their true positions in the frame, thin, ramped early to late, with the path threading through them. Where the body went.
• bands --- one row per region of the body carrying its joint angles over time, so an hour compresses into a strip. What shape the body held, and when it changed.

One function and not three. stroboscope() and multishot() drew the same kind of picture two ways, and having both meant a reader had to know which before choosing; they were merged for that reason. Three skeleton views arriving as three names would recreate the problem knowingly. They share landmarks, visibility gating and normalisation, and differ only in what they draw.

What each adds over what was already here. pose_waterfall(style='both') draws skeletons and trajectories in 3D, which must be rotated to be read; strip is flat. posegram carries landmark SPEED, so a held posture reads as nothing at all; bands carries configuration, so a held shape is a steady band and a change of shape is an edge. multishot composites photographs; room draws lines, so many more moments fit before they occlude one another.

All of it is downstream of the pose detector, which is better at this than expected: measured on a dance corpus it finds a body in 99 to 100 per cent of frames, including on the recording whose dark costume against a black curtain defeats plate differencing. What it loses is individual LANDMARKS --- the wrists most often --- and a row that needs one is a gap wherever it is missing.

Frames it missed are left as GAPS rather than interpolated. Filling them would invent posture, which is worse than admitting there is none, and in the bands view they are the white columns that show how much of a row is actually measured.

normalise_poses

normalise_poses(landmarks, min_visibility=0.0, anchors=None)

Centre each posture on the pelvis and scale it by torso length.

Without this a dancer stepping towards the camera reads as a change of shape, because every coordinate grows at once.

Parameters:

Name	Type	Description	Default
landmarks		(frames, landmarks, 3) --- x, y and visibility --- from any of the toolbox's extractors: the topology is recognised by landmark count (ANCHORS_BY_TOPOLOGY), so MediaPipe, YOLO and the OpenPose models all work unchanged.	required
min_visibility	float	Landmarks below this are not trusted. A frame whose anchor landmarks fail it becomes a gap.	0.0
anchors	tuple	(hip_indices, shoulder_indices) for a topology the registry does not know. Defaults to None, meaning recognise by count.	None

Returns:

Type	Description
	np.ndarray: (frames, landmarks, 2), with **NaN for frames the detector
	missed**. Gaps are not interpolated: filling them would invent posture.

Source code in musicalgestures/_posetimeline.py

def normalise_poses(landmarks, min_visibility: float = 0.0, anchors=None):
    """Centre each posture on the pelvis and scale it by torso length.

    Without this a dancer stepping towards the camera reads as a change of shape, because
    every coordinate grows at once.

    Args:
        landmarks: `(frames, landmarks, 3)` --- x, y and visibility --- from any of the
            toolbox's extractors: the topology is recognised by landmark count
            (``ANCHORS_BY_TOPOLOGY``), so MediaPipe, YOLO and the OpenPose models all
            work unchanged.
        min_visibility (float): Landmarks below this are not trusted. A frame whose anchor
            landmarks fail it becomes a gap.
        anchors (tuple, optional): ``(hip_indices, shoulder_indices)`` for a topology the
            registry does not know. Defaults to None, meaning recognise by count.

    Returns:
        np.ndarray: `(frames, landmarks, 2)`, with **NaN for frames the detector
        missed**. Gaps are not interpolated: filling them would invent posture.
    """
    lm = np.asarray(landmarks, dtype=float)
    xy, visible = lm[..., :2].copy(), lm[..., 2]

    if anchors is None:
        try:
            anchors = ANCHORS_BY_TOPOLOGY[xy.shape[1]]
        except KeyError:
            raise ValueError(
                f"unrecognised landmark topology with {xy.shape[1]} landmarks; known "
                f"counts are {sorted(ANCHORS_BY_TOPOLOGY)}. Pass anchors=(hips, "
                f"shoulders) to use another skeleton.") from None
    pelvis_idx, shoulder_idx = anchors
    anchors = list(pelvis_idx) + list(shoulder_idx)
    usable = (visible[:, anchors] >= min_visibility).all(axis=1)

    pelvis = xy[:, list(pelvis_idx)].mean(axis=1)
    shoulder = xy[:, list(shoulder_idx)].mean(axis=1)
    scale = np.linalg.norm(shoulder - pelvis, axis=1)
    usable &= scale > 0

    out = np.full(xy.shape, np.nan)
    if usable.any():
        centred = xy[usable] - pelvis[usable][:, None, :]
        out[usable] = centred / scale[usable][:, None, None]
    #: A landmark the detector was unsure of jitters, and a jittering limb is not a
    #: posture. Dropped individually, so one bad wrist does not cost a whole frame.
    out[visible < min_visibility] = np.nan
    return out

region_angles

region_angles(normalised)

The mean angle of each region's bones from vertical, per frame, in degrees.

0 is straight down, 90 is horizontal, 180 straight up. Configuration rather than speed: an arm held out stays at 90 for as long as it is held, where a speed measure reads a held limb as nothing.

Parameters:

Name	Type	Description	Default
normalised		(frames, 33, 2) from normalise_poses.	required

Returns:

Name	Type	Description
dict	dict[str, ndarray]	region name to (frames,), NaN where the region could not be measured.

Source code in musicalgestures/_posetimeline.py

def region_angles(normalised) -> dict[str, np.ndarray]:
    """The mean angle of each region's bones from vertical, per frame, in degrees.

    0 is straight down, 90 is horizontal, 180 straight up. Configuration rather than
    speed: an arm held out stays at 90 for as long as it is held, where a speed measure
    reads a held limb as nothing.

    Args:
        normalised: `(frames, 33, 2)` from `normalise_poses`.

    Returns:
        dict: region name to `(frames,)`, NaN where the region could not be measured.
    """
    xy = np.asarray(normalised, dtype=float)
    out = {}
    for region, bones in REGION_BONES.items():
        angles = np.full((xy.shape[0], len(bones)), np.nan)
        for i, (a, b) in enumerate(bones):
            vector = xy[:, b, :] - xy[:, a, :]
            #: Image y grows downward, so "down the picture" is +y and the angle from
            #: vertical is measured against it.
            angles[:, i] = np.degrees(np.arctan2(np.abs(vector[:, 0]), vector[:, 1]))
        #: A region whose bones are all unseen is NaN, not a warning. `np.nanmean` of an
        #: all-NaN row is correct AND noisy, and a RuntimeWarning that fires on ordinary
        #: input is how a real one gets ignored later. The head region trips it whenever
        #: the nose is below visibility, which is often.
        if angles.size:
            measured = ~np.isnan(angles).all(axis=1)
            row = np.full(angles.shape[0], np.nan)
            if measured.any():
                row[measured] = np.nanmean(angles[measured], axis=1)
            out[region] = row
        else:
            out[region] = angles
    return out

detection_gaps

detection_gaps(landmarks, min_visibility=0.5)

Half-open frame ranges the detector could not place a body in.

Reported rather than smoothed over, because the honest answer to "what was the posture here" is sometimes that nobody knows.

Returns:

Name	Type	Description
list	list[tuple[int, int]]	(start, end) pairs, end exclusive.

Source code in musicalgestures/_posetimeline.py

def detection_gaps(landmarks, min_visibility: float = 0.5) -> list[tuple[int, int]]:
    """Half-open frame ranges the detector could not place a body in.

    Reported rather than smoothed over, because the honest answer to "what was the posture
    here" is sometimes that nobody knows.

    Returns:
        list: `(start, end)` pairs, end exclusive.
    """
    normalised = normalise_poses(landmarks, min_visibility)
    missing = np.isnan(normalised[:, list(PELVIS), 0]).any(axis=1)
    gaps, start = [], None
    for i, absent in enumerate(missing):
        if absent and start is None:
            start = i
        elif not absent and start is not None:
            gaps.append((start, i))
            start = None
    if start is not None:
        gaps.append((start, len(missing)))
    return gaps

pose_timeline_data

pose_timeline_data(landmarks, min_visibility=0.5)

Everything the three views share: normalised postures, angles, path and gaps.

Raises:

Type	Description
ValueError	when no frame holds a usable pose. An empty figure reads as "nothing happened" rather than as "nobody was found", and those are different answers.

Source code in musicalgestures/_posetimeline.py

def pose_timeline_data(landmarks, min_visibility: float = 0.5):
    """Everything the three views share: normalised postures, angles, path and gaps.

    Raises:
        ValueError: when no frame holds a usable pose. An empty figure reads as "nothing
            happened" rather than as "nobody was found", and those are different answers.
    """
    normalised = normalise_poses(landmarks, min_visibility)
    if np.isnan(normalised[:, list(PELVIS), 0]).all():
        raise ValueError(
            "no pose was detected in any frame at "
            f"min_visibility={min_visibility}. The detector finds nothing on a small or "
            "dark figure against a dark background; lower min_visibility, or accept that "
            "this recording has no skeleton to draw.")
    raw = np.asarray(landmarks, dtype=float)
    path = raw[:, list(PELVIS), :2].mean(axis=1)
    path[np.isnan(normalised[:, PELVIS[0], 0])] = np.nan
    return {"normalised": normalised, "angles": region_angles(normalised),
            "path": path, "gaps": detection_gaps(landmarks, min_visibility)}

smooth_trail

smooth_trail(y, window=9)

A moving median along a trail, leaving gaps as gaps.

A curve drawn at every frame is unreadable exactly where the most is happening: on a 30 fps recording the busy half of a section puts thousands of points into a few centimetres of paper, and the limb's real excursion disappears inside its own tremor. A median rather than a mean, because one badly-placed landmark should not drag the curve towards it.

It does not bridge gaps. A window spanning missing frames would invent the posture in between, which is the same fault as interpolating them.

Parameters:

Name	Type	Description	Default
y		One coordinate along a trail.	required
window	int	Frames in the window. 0 or 1 returns the trail untouched.	9

Returns:

Type	Description
	np.ndarray: The smoothed trail, NaN preserved where the input was NaN.

Source code in musicalgestures/_posetimeline.py

def smooth_trail(y, window: int = 9):
    """A moving median along a trail, leaving gaps as gaps.

    A curve drawn at every frame is unreadable exactly where the most is happening: on a
    30 fps recording the busy half of a section puts thousands of points into a few
    centimetres of paper, and the limb's real excursion disappears inside its own tremor.
    A median rather than a mean, because one badly-placed landmark should not drag the
    curve towards it.

    **It does not bridge gaps.** A window spanning missing frames would invent the posture
    in between, which is the same fault as interpolating them.

    Args:
        y: One coordinate along a trail.
        window (int): Frames in the window. 0 or 1 returns the trail untouched.

    Returns:
        np.ndarray: The smoothed trail, NaN preserved where the input was NaN.
    """
    y = np.asarray(y, dtype=float)
    if window is None or window < 2 or y.size == 0:
        return y
    half = int(window) // 2
    out = np.full(y.shape, np.nan)
    for i in range(y.size):
        if np.isnan(y[i]):
            continue                                   # a gap stays a gap
        piece = y[max(0, i - half):i + half + 1]
        finite = piece[~np.isnan(piece)]
        if finite.size:
            out[i] = np.median(finite)
    return out

connecting_trajectory

connecting_trajectory(normalised, picks, marker=TRAJECTORY_GROUPS, lane=LANE, max_reach=4.0, smooth=SMOOTH_SPATIAL, space='room', raw=None, height=1080)

The course one or more landmark groups take THROUGH the postures, lane to lane.

Drawn over the skeletons so it is visible how one posture connects to the next.

Parameters:

Name	Type	Description	Default
normalised		(frames, 33, 2) from normalise_poses.	required
picks		The sampled frame indices, ascending.	required
marker		An index, a sequence of indices to average, or a mapping of name to indices for several lines at once. Defaults to head / pelvis / feet.	TRAJECTORY_GROUPS
lane	float	Horizontal spacing between postures.	LANE
max_reach	float	In body space, points beyond this many torso lengths are dropped as detector noise.	4.0
smooth	int	Moving-median window along each line. 0 draws every frame.	SMOOTH_SPATIAL
space	str	'room' follows the group's real position in the frame, which is where stability lives; 'body' follows it in the normalised space the skeletons are drawn in, which is where GESTURE lives --- and where the pelvis is flat by construction.	'room'
raw		(frames, 33, 3) original landmarks, required for space='room'.	None
height	int	Frame height, to scale room coordinates into the strip.	1080

Returns:

Name	Type	Description
dict		name to a list of (x, y) arrays, one per gap between postures.

Source code in musicalgestures/_posetimeline.py

def connecting_trajectory(normalised, picks, marker=TRAJECTORY_GROUPS, lane: float = LANE,
                          max_reach: float = 4.0, smooth: int = SMOOTH_SPATIAL,
                          space: str = "room",
                          raw=None, height: int = 1080):
    """The course one or more landmark groups take THROUGH the postures, lane to lane.

    Drawn over the skeletons so it is visible how one posture connects to the next.

    Args:
        normalised: `(frames, 33, 2)` from `normalise_poses`.
        picks: The sampled frame indices, ascending.
        marker: An index, a sequence of indices to average, or a mapping of name to
            indices for several lines at once. Defaults to head / pelvis / feet.
        lane (float): Horizontal spacing between postures.
        max_reach (float): In body space, points beyond this many torso lengths are
            dropped as detector noise.
        smooth (int): Moving-median window along each line. 0 draws every frame.
        space (str): `'room'` follows the group's real position in the frame, which is
            where stability lives; `'body'` follows it in the normalised space the
            skeletons are drawn in, which is where GESTURE lives --- and where the pelvis
            is flat by construction.
        raw: `(frames, 33, 3)` original landmarks, required for `space='room'`.
        height (int): Frame height, to scale room coordinates into the strip.

    Returns:
        dict: name to a list of `(x, y)` arrays, one per gap between postures.
    """
    xy = np.asarray(normalised, dtype=float)
    groups = (marker if isinstance(marker, dict)
              else {"marker": marker if isinstance(marker, (tuple, list)) else (marker,)})
    picks = list(picks)

    if space == "room":
        if raw is None:
            raise ValueError("space='room' needs the raw landmarks, which carry position")
        source = np.asarray(raw, dtype=float)[..., :2].copy()
        #: Room coordinates are pixels; the strip's vertical is about two torso lengths.
        #: Scaled by frame height and centred, so the three lines sit among the figures
        #: rather than off the page.
        source[..., 1] = (source[..., 1] / max(height, 1) - 0.5) * 3.0
        source[np.isnan(xy[..., 0])] = np.nan
    else:
        source = xy

    out: dict[str, list] = {}
    for name, indices in groups.items():
        idx = list(indices) if isinstance(indices, (tuple, list)) else [indices]
        #: The average of a few landmarks is steadier than any one of them, and a group
        #: with one missing member is still measurable from the rest --- but a frame where
        #: ALL of them are missing is NaN, not a warning. This is the same fault as in
        #: `region_angles`, fixed there and missed here: `np.nanmean` of an all-NaN row is
        #: correct and noisy, and a RuntimeWarning on ordinary input is how a real one
        #: gets ignored later.
        group = source[:, idx, :]
        measured = ~np.isnan(group[..., 0]).all(axis=1)
        centre = np.full((group.shape[0], 2), np.nan)
        if measured.any():
            centre[measured] = np.nanmean(group[measured], axis=1)
        segments = []
        for i in range(len(picks) - 1):
            a, b = picks[i], picks[i + 1]
            span = np.arange(a, b + 1)
            if len(span) < 2:
                continue
            y = smooth_trail(centre[span, 1], smooth)
            raw_x = centre[span, 0]
            x_in_lane = smooth_trail(raw_x, smooth)
            keep = np.isfinite(y) & np.isfinite(x_in_lane) & np.isfinite(raw_x)
            if space == "body":
                keep &= np.hypot(x_in_lane, y) <= max_reach
            if keep.sum() < 2:
                continue
            fraction = (span[keep] - a) / max(b - a, 1)
            #: In room space the horizontal is time alone: a pixel x would put the lines
            #: where the body was in the frame, which is the other view's job.
            anchor = 0.0 if space == "room" else raw_x[keep][0]
            anchor_end = 0.0 if space == "room" else raw_x[keep][-1]
            start = i * lane + anchor
            end = (i + 1) * lane + anchor_end
            segments.append((start + fraction * (end - start), y[keep]))
        out[name] = segments
    return out

lane_spacing

lane_spacing(trajectories=None)

How far apart to set the postures.

A fan of ghosts needs room that bare postures do not: at the fixed spacing the busiest figures sat inside the previous one's history, which reads as one confused body rather than as two moments.

Source code in musicalgestures/_posetimeline.py

def lane_spacing(trajectories=None) -> float:
    """How far apart to set the postures.

    A fan of ghosts needs room that bare postures do not: at the fixed spacing the busiest
    figures sat inside the previous one's history, which reads as one confused body rather
    than as two moments.
    """
    return LANE_WITH_TRACES if trajectories == "traces" else LANE

posture_traces

posture_traces(normalised, picks, n_ghosts=6, reach=0.5)

Which earlier frames to draw behind each posture, and how faint each should be.

Every landmark leaves a trace, not one --- and the traces FADE, so the direction of time reads. A history drawn at constant alpha is a tangle: it says a limb was in several places without saying which it reached last.

Parameters:

Name	Type	Description	Default
normalised		(frames, 33, 2) from normalise_poses.	required
picks		The sampled frame indices.	required
n_ghosts	int	Earlier frames to draw behind each posture.	6
reach	float	How far back to reach, as a fraction of the gap to the previous sample. Short on purpose: a history covering the whole gap is the scribble this replaced.	0.5

Returns:

Name	Type	Description
list		One (frames, alphas) pair per pick, oldest first and faintest first.

Source code in musicalgestures/_posetimeline.py

def posture_traces(normalised, picks, n_ghosts: int = 6, reach: float = 0.5):
    """Which earlier frames to draw behind each posture, and how faint each should be.

    Every landmark leaves a trace, not one --- and the traces FADE, so the direction of
    time reads. A history drawn at constant alpha is a tangle: it says a limb was in
    several places without saying which it reached last.

    Args:
        normalised: `(frames, 33, 2)` from `normalise_poses`.
        picks: The sampled frame indices.
        n_ghosts (int): Earlier frames to draw behind each posture.
        reach (float): How far back to reach, as a fraction of the gap to the previous
            sample. Short on purpose: a history covering the whole gap is the scribble
            this replaced.

    Returns:
        list: One `(frames, alphas)` pair per pick, oldest first and faintest first.
    """
    xy = np.asarray(normalised, dtype=float)
    picks = list(picks)
    out: list[tuple[list, list]] = []
    for i, frame in enumerate(picks):
        previous = picks[i - 1] if i else max(0, frame - (picks[1] - picks[0]) if len(picks) > 1 else 0)
        span = max(1, int((frame - previous) * reach))
        candidates = [f for f in range(max(0, frame - span), frame + 1)
                      if not np.isnan(xy[f, PELVIS[0], 0])]
        if not candidates:
            out.append(([], []))
            continue
        chosen = [candidates[int(round(j))] for j in
                  np.linspace(0, len(candidates) - 1, min(n_ghosts, len(candidates)))]
        alphas = np.linspace(0.08, 0.35, len(chosen))
        out.append((chosen, list(alphas)))
    return out

render_pose_timeline

render_pose_timeline(data, view='strip', n_samples=12, raw=None, width=1920, height=1080, times=None, cmap='viridis', dpi=200, trajectories=None, markers=TRAJECTORY_GROUPS, smooth=SMOOTH, space='room', n_ghosts=6, smooth_spatial=SMOOTH_SPATIAL)

Draw one of the three views. Returns a matplotlib figure.

Source code in musicalgestures/_posetimeline.py

def render_pose_timeline(data, view: str = "strip", n_samples: int = 12,
                         raw=None, width: int = 1920, height: int = 1080,
                         times=None, cmap: str = "viridis", dpi: int = 200,
                         trajectories=None, markers=TRAJECTORY_GROUPS, smooth: int = SMOOTH,
                         space: str = "room", n_ghosts: int = 6,
                         smooth_spatial: int = SMOOTH_SPATIAL):
    """Draw one of the three views. Returns a matplotlib figure."""
    import matplotlib.pyplot as plt

    normalised, angles, path = data["normalised"], data["angles"], data["path"]
    usable = _usable_frames(normalised)
    colours = plt.get_cmap(cmap)

    if view == "strip":
        #: **Two kinds of trace, and they are not alternatives.** `'temporal'` is what a
        #: figure did around its own instant --- every landmark, fading, so the direction
        #: of time reads. `'spatial'` is how one figure connects to the next. Asking for
        #: both is the ordinary case. `'path'` adds the room route as a schematic.
        asked = ([] if trajectories is None
                 else [trajectories] if isinstance(trajectories, str)
                 else list(trajectories))
        allowed = {"temporal", "spatial", "path"}
        unknown = [a for a in asked if a not in allowed]
        if unknown:
            raise ValueError(
                f"trajectories must be drawn from {sorted(allowed)} --- singly or "
                f"together --- not {unknown[0]!r}")

        picks = usable[np.linspace(0, len(usable) - 1, min(n_samples, len(usable)))
                       .round().astype(int)]
        lane = lane_spacing("temporal" if "temporal" in asked else None)
        #: ONE PANEL. A path plot underneath said where the body was, which is the room
        #: view's job, and doubled the figure's height to say it. The timeline is the
        #: numbers under the postures.
        fig, top = plt.subplots(figsize=(max(6, len(picks) * 1.3), 3.6), dpi=dpi)

        ghosts = (posture_traces(normalised, picks, n_ghosts)
                  if "temporal" in asked else None)
        for cell, frame in enumerate(picks):
            if ghosts is not None:
                for ghost, alpha in zip(*ghosts[cell]):
                    faded = normalised[ghost].copy()
                    faded[:, 0] += cell * lane
                    _draw_skeleton(top, faded, SKELETON, 1.0, alpha=alpha)
            xy = normalised[frame].copy()
            xy[:, 0] += cell * lane
            _draw_skeleton(top, xy, SKELETON, 1.6)

        if "spatial" in asked:
            styles = {"head": (0.25, "-"), "pelvis": (0.35, "-"), "feet": (0.5, "--")}
            lines = connecting_trajectory(normalised, picks, marker=markers, lane=lane,
                                          smooth=smooth_spatial, space=space, raw=raw,
                                          height=height)
            for name, segments in lines.items():
                shade, dash = styles.get(name, (0.3, "-"))
                for x, y in segments:
                    top.plot(x, y, color=str(shade), linewidth=1.0, alpha=0.9,
                             linestyle=dash, zorder=5)

        if "path" in asked:
            finite = ~np.isnan(path[:, 0])
            if finite.any():
                px = path[finite, 0]
                lanes = (px - px.min()) / max(np.ptp(px), 1e-9) * (len(picks) - 1) * lane
                py = path[finite, 1]
                py = (py - py.min()) / max(np.ptp(py), 1e-9) * 0.8 - 2.2
                top.plot(lanes, py, color="0.55", linewidth=0.8, alpha=0.8)

        top.set_aspect("equal")
        top.invert_yaxis()                              # image y grows downward
        #: The timeline: one tick under each posture, at its own instant.
        t = np.arange(len(path)) if times is None else np.asarray(times)
        top.set_xticks([cell * lane for cell in range(len(picks))])
        top.set_xticklabels([f"{t[f]:.0f}" for f in picks], fontsize=8)
        top.set_yticks([])
        for side in ("top", "right", "left"):
            top.spines[side].set_visible(False)
        top.tick_params(axis="x", length=3)
        top.set_xlabel("time (s)" if times is not None else "time (frames)", fontsize=8)

    elif view == "room":
        from musicalgestures._multishot import choose_spaced
        candidates = [{"index": int(f), "area": 1.0,
                       "centroid": (float(path[f, 0]), float(path[f, 1]))}
                      for f in usable]
        chosen = choose_spaced(candidates, n_samples)
        fig, ax = plt.subplots(figsize=(width / 240, height / 240), dpi=dpi)
        for order, c in enumerate(chosen):
            frame = c["index"]
            xy = np.asarray(raw)[frame, :, :2].copy()
            xy[np.isnan(normalised[frame, :, 0])] = np.nan
            #: Black here too. The route and its stops carry the order, and a dozen
            #: differently-tinted skeletons in one room is harder to read, not easier.
            _draw_skeleton(ax, xy, SKELETON, 1.3)
        #: The route drawn OVER the figures, not under them: the point of this view is
        #: seeing how the postures connect, and a path behind a dozen skeletons is
        #: invisible exactly where they cluster.
        finite = ~np.isnan(path[:, 0])
        ax.plot(path[finite, 0], path[finite, 1], color="0.15", linewidth=1.2,
                alpha=0.9, zorder=5)
        #: And a dot where each drawn posture stands, so a figure can be tied to the
        #: moment on the route that produced it.
        stops = np.array([[path[c["index"], 0], path[c["index"], 1]] for c in chosen])
        ax.scatter(stops[:, 0], stops[:, 1], s=18, zorder=6,
                   c=[colours(i / max(len(chosen) - 1, 1)) for i in range(len(chosen))],
                   edgecolors="0.15", linewidths=0.6)
        #: `extract_pose_landmarks` returns PIXELS, not normalised coordinates -- checked
        #: rather than assumed: on a 640x480 recording x runs 215 to 530. The first draft
        #: set these to (0, 1) and drew every skeleton off-canvas.
        ax.set_xlim(0, width)
        ax.set_ylim(height, 0)
        ax.set_aspect("equal")
        ax.axis("off")

    elif view == "bands":
        names = list(REGION_BONES)
        grid = np.vstack([angles[n] for n in names])
        fig, ax = plt.subplots(figsize=(11, 2.6), dpi=dpi)
        span = (0, len(path) if times is None else float(np.asarray(times)[-1]))
        im = ax.imshow(grid, aspect="auto", cmap=cmap, vmin=0, vmax=180,
                       interpolation="nearest", extent=(span[0], span[1], len(names), 0))
        ax.set_yticks(np.arange(len(names)) + 0.5)
        ax.set_yticklabels(names, fontsize=8)
        #: The region names stay: without them the rows are five anonymous stripes and
        #: the figure says nothing. The time axis keeps its unit for the same reason.
        ax.set_xlabel("time (s)" if times is not None else "time (frames)", fontsize=8)
        fig.colorbar(im, ax=ax, pad=0.01)

    else:
        raise ValueError(f"view must be 'strip', 'room' or 'bands', not {view!r}")

    fig.tight_layout()
    return fig

pose_timeline

pose_timeline(landmarks, view='strip', n_samples=12, min_visibility=0.5, times=None, width=1920, height=1080, cmap='viridis', dpi=200, trajectories=None, markers=TRAJECTORY_GROUPS, smooth=SMOOTH, space='room', n_ghosts=6, smooth_spatial=SMOOTH_SPATIAL)

Postures and trajectories over time, as a matplotlib figure.

Parameters:

Name	Type	Description	Default
landmarks		(frames, 33, 3) from extract_pose_landmarks.	required
view	str	'strip', 'room' or 'bands'. See the module docstring.	'strip'
n_samples	int	Postures to draw, for strip and room.	12
min_visibility	float	Landmarks below this are not trusted.	0.5
times	optional	Seconds per frame, for a real time axis.	None
width, height	int	The frame's size, for the room view's aspect.	required
trajectories	str or sequence	For strip, singly or together. 'temporal' gives every landmark a fading history behind its own posture --- what that figure did around its instant. 'spatial' draws head, pelvis and feet through the postures, anchored on each figure, so it is visible how one connects to the next: vertical is real height, horizontal is time across the gap. They answer different questions and asking for both is ordinary. 'path' draws the body's route through the room across the lanes, which is a schematic: normalising the postures is what removed their translation, so the route cannot be to scale in that space, and it is drawn faintly and labelled. Defaults to None.	None
markers	tuple or int	Landmark to follow for 'connect'. Defaults to the wrists, of which the first is used --- the hand is where a gesture's shape is most legible.	TRAJECTORY_GROUPS
smooth	int	Moving-median window for the temporal traces, in frames. Defaults to 9, about a third of a second at 30 fps; 0 draws every frame.	SMOOTH
smooth_spatial	int	The window for the spatial lines, which want a wider one: they carry carriage rather than gesture, and at the traces' window they thrash through a fast passage and cross other figures. Defaults to 45, about a second and a half at 30 fps. A window wider than the gap between two postures flattens that segment to a constant, so a short recording sampled many times wants it lowered along with n_samples.	SMOOTH_SPATIAL
cmap	str), dpi (int	Appearance.	'viridis'

Returns:

Type	Description
	matplotlib.figure.Figure

Raises:

Type	Description
ValueError	when no frame holds a usable pose, or view is not one of the three.

Source code in musicalgestures/_posetimeline.py

def pose_timeline(landmarks, view: str = "strip", n_samples: int = 12,
                  min_visibility: float = 0.5, times=None, width: int = 1920,
                  height: int = 1080, cmap: str = "viridis", dpi: int = 200,
                  trajectories=None, markers=TRAJECTORY_GROUPS, smooth: int = SMOOTH,
                  space: str = "room", n_ghosts: int = 6,
                  smooth_spatial: int = SMOOTH_SPATIAL):
    """Postures and trajectories over time, as a matplotlib figure.

    Args:
        landmarks: `(frames, 33, 3)` from `extract_pose_landmarks`.
        view (str): `'strip'`, `'room'` or `'bands'`. See the module docstring.
        n_samples (int): Postures to draw, for `strip` and `room`.
        min_visibility (float): Landmarks below this are not trusted.
        times (optional): Seconds per frame, for a real time axis.
        width, height (int): The frame's size, for the `room` view's aspect.
        trajectories (str or sequence, optional): For `strip`, singly or together.
            `'temporal'` gives every landmark a fading history behind its own posture ---
            what that figure did around its instant. `'spatial'` draws head, pelvis and
            feet **through** the postures, anchored on each figure, so it is visible how
            one connects to the next: vertical is real height, horizontal is time across
            the gap. They answer different questions and asking for both is ordinary.
            `'path'` draws the
            body's route through the room across the lanes, which is a **schematic**:
            normalising the postures is what removed their translation, so the route
            cannot be to scale in that space, and it is drawn faintly and labelled.
            Defaults to None.
        markers (tuple or int): Landmark to follow for `'connect'`. Defaults to the
            wrists, of which the first is used --- the hand is where a gesture's shape is
            most legible.
        smooth (int): Moving-median window for the temporal traces, in frames. Defaults
            to 9, about a third of a second at 30 fps; 0 draws every frame.
        smooth_spatial (int): The window for the spatial lines, which want a wider one:
            they carry carriage rather than gesture, and at the traces' window they thrash
            through a fast passage and cross other figures. Defaults to 45, about a second
            and a half at 30 fps. **A window wider than the gap between two postures
            flattens that segment to a constant**, so a short recording sampled many times
            wants it lowered along with `n_samples`.
        cmap (str), dpi (int): Appearance.

    Returns:
        matplotlib.figure.Figure

    Raises:
        ValueError: when no frame holds a usable pose, or `view` is not one of the three.
    """
    data = pose_timeline_data(landmarks, min_visibility)
    return render_pose_timeline(data, view=view, n_samples=n_samples, raw=landmarks,
                                width=width, height=height, times=times, cmap=cmap,
                                dpi=dpi, trajectories=trajectories, markers=markers,
                                smooth=smooth, space=space, n_ghosts=n_ghosts,
                                smooth_spatial=smooth_spatial)

mg_pose_timeline

mg_pose_timeline(self, view='strip', n_samples=12, min_visibility=0.5, landmarks=None, times=None, cmap='viridis', dpi=200, trajectories=None, markers=TRAJECTORY_GROUPS, smooth=SMOOTH, smooth_spatial=SMOOTH_SPATIAL, target_name=None, overwrite=True, **pose_kwargs)

Postures and trajectories over time. See pose_timeline.

Landmarks come from a cached pose() result when there is one, exactly as posegram resolves them, and otherwise from a fresh extraction.

Source code in musicalgestures/_posetimeline.py

def mg_pose_timeline(self: "musicalgestures.MgVideo", view: str = "strip",
                     n_samples: int = 12, min_visibility: float = 0.5,
                     landmarks=None, times=None, cmap: str = "viridis", dpi: int = 200,
                     trajectories=None, markers=TRAJECTORY_GROUPS, smooth: int = SMOOTH,
                     smooth_spatial: int = SMOOTH_SPATIAL,
                     target_name: str | None = None, overwrite: bool = True,
                     **pose_kwargs) -> "MgFigure":
    """Postures and trajectories over time. See `pose_timeline`.

    Landmarks come from a cached `pose()` result when there is one, exactly as `posegram`
    resolves them, and otherwise from a fresh extraction.
    """
    import matplotlib.pyplot as plt

    from musicalgestures._utils import MgFigure, resolve_filename

    if landmarks is None:
        from musicalgestures._posetools import extract_pose_landmarks
        result = extract_pose_landmarks(self.filename, quiet=True, verbose=False,
                                        **pose_kwargs)
        landmarks = result["landmarks"]
        #: The key is `time`, not `times`. Asking for the wrong one silently gave frame
        #: numbers on an axis labelled seconds, which is a plausible-looking wrong answer.
        times = result.get("time")
        if times is None and result.get("fps"):
            times = np.arange(len(landmarks)) / float(result["fps"])

    target_name = resolve_filename(self.of, f"_posetimeline_{view}.png", target_name,
                                   overwrite)
    figure = pose_timeline(landmarks, view=view, n_samples=n_samples,
                           min_visibility=min_visibility, times=times,
                           width=self.width, height=self.height, cmap=cmap, dpi=dpi,
                           trajectories=trajectories, markers=markers, smooth=smooth,
                           smooth_spatial=smooth_spatial)
    figure.savefig(target_name, dpi=dpi)
    plt.close(figure)
    self.pose_timeline_figure = MgFigure(
        figure=figure, figure_type="video.posetimeline",
        data={"view": view}, layers=None, image=target_name)
    return self.pose_timeline_figure
