Sound–Movement Analysis Toolkit

Alongside the MgVideo/MgAudio methods, MGT-python ships a lower-level toolkit of plain-numpy sound–movement analysis functions, ported from the author's own research pipelines: the ro ritual-drumming study, the stillstanding/standstill-championship posturography study, the Westney with/without-audience piano comparisons, and the cymbal-comparison striking study. Unlike the MgVideo/MgAudio methods, these functions operate directly on numpy arrays (onset times, position/landmark trajectories, waveforms) — no video decoding or rendering — so they drop straight into notebooks, batch scripts, or your own analysis pipeline. Every function is importable directly from musicalgestures (except where noted) and documents its own provenance and default-parameter caveats in its docstring; see the API Reference for full signatures.

Peak-picking core

pick_peaks(x, fs=1.0, smooth=3, rel_threshold=0.5, min_interval=0.3, rel_prominence=0.2, ...) (_peaks) is the single adaptive peak-picker — moving-average smoothing, a relative or absolute amplitude threshold, a minimum inter-peak interval, and an optional prominence gate — shared by every event detector in the toolkit (_pulse, _alignment, _qom, _audiofeatures). Its docstring records the provisional per-signal-type defaults used across the source studies (e.g. hand-acceleration impacts vs. audio energy onsets vs. wrist-speed peaks); tune the parameters to the signal at hand rather than relying on the defaults.

Pulse and cycle segmentation (_pulse)

Tools for accelerating rhythmic sequences (developed for the ro ritual's accelerating double-drum-stroke cycles): group onsets into per-cycle stroke groups, tabulate per-cycle metrics, and fit an exponential accelerando.

import numpy as np
from musicalgestures import segment_cycles, cycle_table, fit_accelerando, motion_onsets

onsets = np.array([0.10, 0.34, 1.02, 1.24, 1.85, 2.02, 2.55, 2.68])   # seconds
cycles = segment_cycles(onsets)                    # list[Cycle]: DP segmentation over stroke gaps
table = cycle_table(cycles, clip_id='ro_2023')      # per-cycle DataFrame (t, ioi, n_strokes, ...)
ioi0, t_double, r2 = fit_accelerando(table['t'], table['ioi'])
print(f"tempo doubles every {t_double:.1f}s (R²={r2:.2f})")

# Steepest sustained rises of a motion signal (e.g. per-frame QoM), for
# correlating movement onsets with the stroke cycles above:
motion_times = motion_onsets(qom_signal, fs=25.0)

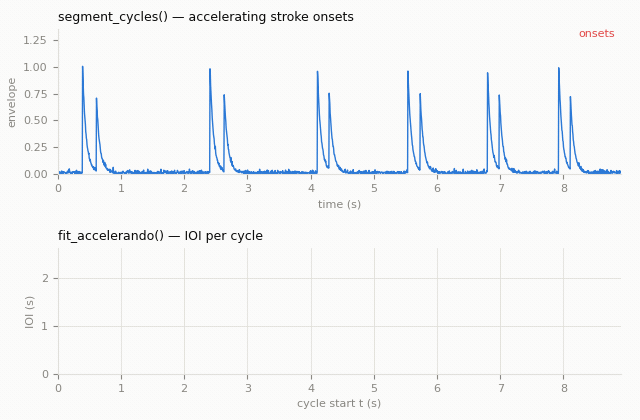

Pulse segmentation: detected onsets are grouped into numbered stroke cycles, and fit_accelerando fits an exponential accelerando to the per-cycle IOIs

group_strokes() (used internally by segment_cycles) segments onsets by dynamic programming over candidate group boundaries, encoding structural priors for accelerating cyclic patterns (group-size cost, within-group gap plausibility, ordering, and a non-increasing-gap accelerando prior). Cycle is a small dataclass (index, strokes, event, plus t_start/n_strokes/stroke_gap properties).

Cross-modal alignment (_alignment)

Lead/lag and coupling between two (or more) time-aligned signals — the audio-vs-movement counterpart of the _pulse module.

  • xcorr_lag(x, y, fs, max_lag=1.5) / envelope_lag(...) — cross-correlation lead/lag between two envelopes.
  • per_cycle_motion_delta(...) — per-cycle timing offset between a stroke cycle and a motion onset.
  • anchor_and_match(...) / offset_stats(...) — one-to-one event matching against an anchor stream, with offset summary statistics.
  • sliding_correlation(...) — windowed correlation over time (does coupling drift?).
  • envelope_agreement(...) — N-source envelope agreement score.
from musicalgestures import xcorr_lag

lag, corr = xcorr_lag(audio_envelope, motion_envelope, fs=25.0, max_lag=1.5)
print(f"movement lags audio by {lag:.3f}s (r={corr:.2f})")

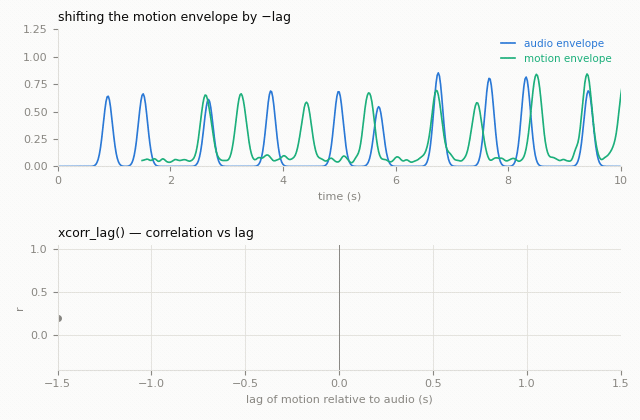

xcorr_lag: the motion envelope slides against the audio envelope while the correlation-vs-lag curve fills in; the peak marks the lag that aligns the two

Quantity-of-motion cores (_qom)

Band-limited QoM (with an automatic decimate+SOS regime for very low frequency bands), accelerometer-to-speed integration, per-landmark-group pose QoM, body-scale normalization for framing-invariant comparisons, spatial grid QoM, and small envelope/binning helpers.

from musicalgestures import band_limited_qom, accel_to_speed

speed, fs_out = band_limited_qom(marker_xyz, fs=100.0, lo=0.3, hi=15.0)   # px or mm per second

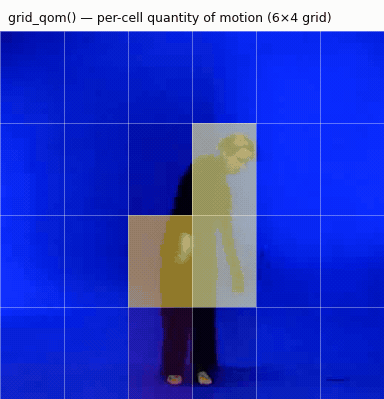

grid_qom on dancer.avi: per-cell quantity of motion on a 6×4 grid, overlaid on the video as a heatmap that follows the dancer's movement

group_qom() generalises band_limited_qom() to any group of marker/landmark trajectories (mocap markers included), and accel_to_speed() integrates a 3-axis accelerometer to a speed signal (the "corpus method" from the stillstanding study). For the pose-specific pose_qom()/body_scale()/normalized_qom() (framing-invariant QoM from MediaPipe landmarks), see the dedicated Pose Tracking page.

Audio feature extraction (_audiofeatures)

Scipy-only audio features and onset detectors that complement the librosa-based, figure-producing MgAudio methods with lightweight numeric outputs: rms_envelope, spectral_flux, spectral_flux_onsets, energy_onsets, t60_backward_decay (reverberation time), and attack_spectral_centroid. All onset detectors use pick_peaks under the hood.

from musicalgestures import rms_envelope, energy_onsets

env, rate = rms_envelope(y, sr, window=0.02)
onsets = energy_onsets(y, sr)     # onset times (s) from the RMS envelope

Postural sway metrics (_posture)

Posturography ported from the stillstanding study, operating on plain centre-of-pressure (CoP) or marker-position arrays — no study-specific loaders or axis conventions:

  • Sway amount / geometry — cop_sway_metrics, confidence_ellipse_area, convex_hull_area.
  • Control dynamics / complexity — stabilogram_diffusion (Collins–De Luca SDA), dfa (detrended fluctuation analysis), sample_entropy, spectral_edges, sway_texture, principal_axis_projection.
  • Direction / extent — sway_orientation, axial_rayleigh, spatial_extent.
from musicalgestures import cop_sway_metrics

metrics = cop_sway_metrics(cop_xy, fs=100.0)   # cop_xy: (T, 2) array [ML, AP], mm
print(metrics['path_len'], metrics['area95'], metrics['ap_ml_sd_ratio'])

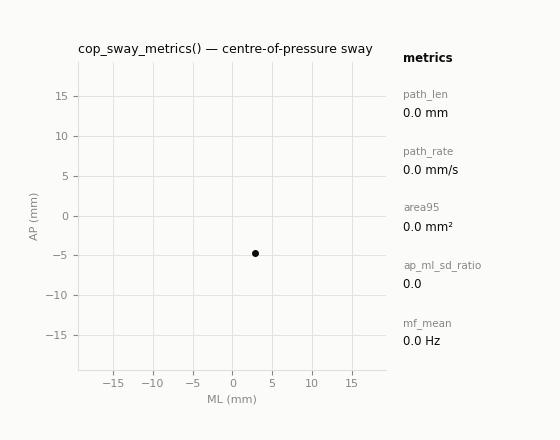

cop_sway_metrics on a synthetic centre-of-pressure path: the sway trajectory draws itself, then the 95% confidence ellipse, principal sway axis and summary metrics appear

cop_sway_metrics() returns CoP path length/rate, the 95% confidence-ellipse area, medio-lateral (ML) and antero-posterior (AP) ranges/standard deviations and their ratios, and the mean sway frequency per axis. The from-scratch SDA/DFA/sample-entropy implementations are validated in the test suite against known-answer synthetic signals.

Physiology features (_physio)

respiration_rate(waveform, fs, band=(0.1, 0.6), window_s=30, step_s=30) — windowed breathing rate (breaths/min) via band-pass filtering and a per-window Welch spectral peak — and spectral_band_fractions(...) — the fraction of a signal's Welch power in each of a set of caller-supplied named frequency bands (a generic spectral-composition diagnostic, e.g. for cardiorespiratory QoM), both ported from the stillstanding study's Deichman/Equivital physiology analyses.

Motion-capture I/O and cross-modality comparison (_mocap)

read_qtm_tsv(path) is a single robust reader for Qualisys Track Manager (QTM) TSV exports, consolidating several near-duplicate study loaders (marker-name recovery, numeric-block autodetection, gap-fill-to-NaN conversion, UTF-8/latin-1 fallback). compare_modality_envelopes(...) resamples two motion envelopes (e.g. video-pose vs. mocap) onto a common per-second grid and correlates them.

dominant_frequency is not re-exported from _mocap

_mocap also defines its own dominant_frequency (a Welch-peak variant from the Westney study). It is intentionally not re-exported at the musicalgestures top level, since it would shadow the pre-existing musicalgestures.dominant_frequency (from _analysis). Reach it explicitly as musicalgestures._mocap.dominant_frequency.

Pose-landmark trajectory extraction (_posetools)

The array-level pose workflow: video file → tidy per-landmark trajectory arrays (and optionally CSV) → derived motion signals (limb speed, impact events), complementing — not replacing — the rendering-oriented MgVideo.pose() pipeline. This is covered in full on its own page: Pose Tracking — installing the [pose] extra, extract_pose_landmarks() (NaN/dropout semantics, detection-rate reporting), the derived-signal helpers midpoint(), limb_speed_from_landmarks(), impact_events(), pose_qom()/ body_scale(), and validating a video-derived pose signal against motion capture with read_qtm_tsv()/compare_modality_envelopes().

Numpy-level motiongram data

motiongram_data(frames, orientation='vertical', frame_diff=True, normalize=True) (in _motionanalysis) computes a motiongram as a plain numpy array from a stack of grayscale frames, with a selectable orientation — 'vertical' collapses each frame to its per-row mean (image row vs. time, e.g. a mallet's approach-and-rebound path), 'horizontal' to its per-column mean (image column vs. time, side-to-side motion). It is the numpy-level counterpart of MgVideo.motiongrams()'s rendered _mgv/_mgh images — use it when you want the motiongram as data for further analysis, e.g. feeding it to grid_qom() or a peak-picker.

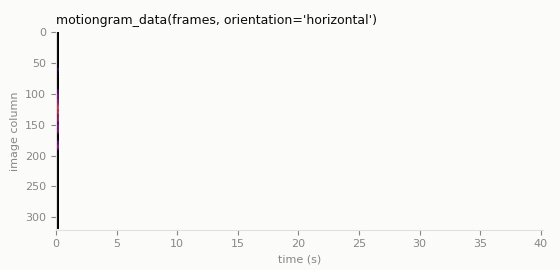

motiongram_data of dancer.avi building up over time, first with orientation='horizontal' (image column vs time), then the 'vertical' variant (image row vs time)
