micromotion

Analysis of human micromotion in motion time series: optical marker data, body-worn accelerometers, respiration belts and force-plate centre of pressure.

The package is built around one measure, quantity of motion, which is the average speed of a body part, band-limited to 0.2–5 Hz, in millimetres per second. It applies equally to all of those sensor families, because the shared abstraction is the frequency band rather than the device.

pip install micromotion

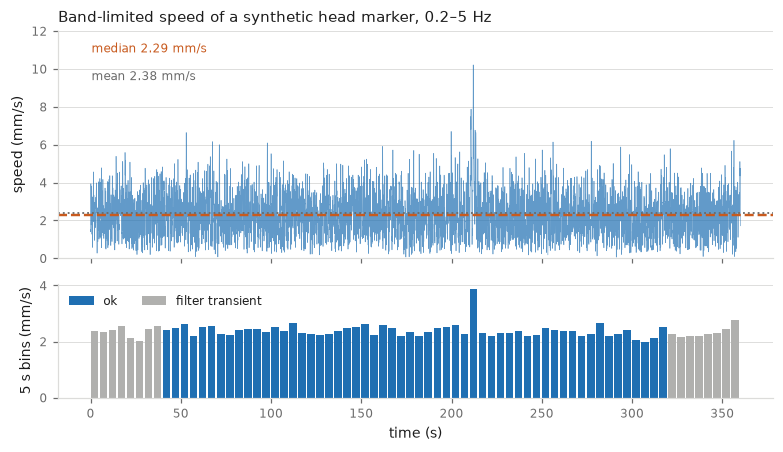

The figure above is the output of mm.qom on a synthetic recording of a standing body, drawn by docs/img/make_figures.py. The dashed line is the median, the dotted line the mean, and the lower panel shows the same series in five-second bins, with the filter-contaminated ends flagged rather than dropped.

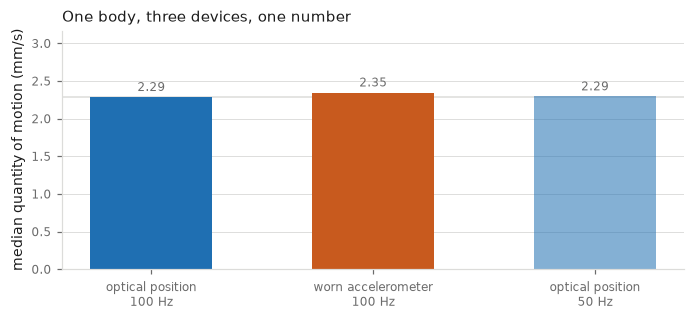

The claim that the device does not matter is worth seeing rather than taking on trust. Here is one synthetic body motion read three ways — as optical position at 100 Hz, as the acceleration a worn sensor would report, and as position sampled at 50 Hz:

2.29, 2.35 and 2.29 mm/s, a spread of 2.6 per cent across a change of sensor family and a halving of the sampling rate. That agreement is the reason this package exists as one package rather than three.

What it does NOT mean is that any two real recordings are comparable. These three are derived from one trajectory, so nothing differs except the pipeline. Real devices also differ in where they sit on the body, what they are made of and where their noise floor is, and those differences are large: see The three bands and Validating data.

Who this is for

Anyone measuring small involuntary movement in a standing, sitting or otherwise stationary body, whether that is postural sway, physiological tremor, the mechanical trace of breathing and heartbeat, or how a group of people responds to a shared stimulus. The methods are the standard nonlinear time-series and posturography ones, and the readers cover common laboratory formats.

For gait, gesture or dance, this is probably the wrong tool. The band and most of the defaults assume that the interesting movement is small and that the body is not travelling.

Why a package

Micromotion analysis has an unusually wide gap between "the method" and "a number". The same recording will yield materially different answers depending on the filter band, the differentiation rule, whether the result is band-limited a second time, whether the summary is a mean or a median, and what the true sampling rate turns out to be. None of those choices announces itself in a results table.

Each of them is explicit here, each has a measured default rather than an inherited one, and a few comparisons that look reasonable are refused outright.

What it will not let you do

• Asking for the legacy optical band on accelerometer data raises an error, because gravity is a DC term and an accelerometer cannot be integrated without a lower edge.
• Upsampling raises an error, because it invents structure that scale-sensitive methods treat as real.
• Gap sentinels become NaN on read. A marker "at the origin", or a centre of pressure at the exact middle of a board, are plausible-looking values that are not measurements.
• Partial and filter-contaminated bins are flagged rather than silently included.

Where to start

If you want to	Read
compute a quantity of motion	Getting started
understand a method, or cite it	Methods
know which filter convention to use	The four bands
compare across datasets or devices	Sampling rates
load a file	Reading files
check data before trusting it	Validating data
reduce a recording to a fixed set of numbers	One feature vector
state that an effect is absent	Stating a null
combine with other toolboxes	Working with other packages
look up a function	API reference

Practical notes, worked recipes and known traps are on the wiki, which changes independently of a release.

Citing

Please cite the package, using CITATION.cff in the repository, and cite the underlying methods as well, since Methods gives the reference for each.

Licence: GPL-3.0-or-later. Built at the fourMs lab, RITMO Centre for Interdisciplinary Studies in Rhythm, Time and Motion, University of Oslo.

Citing

Jensenius, A. R., Upham, F., Zelechowska, A., Gonzalez-Sanchez, V. E., Swarbrick, D., & Riaz, M. (2026). micromotion: analysis of human micromotion in motion time series (Version 1.12.2) [Computer software]. Zenodo. https://doi.org/10.5281/zenodo.21953120

That is the CONCEPT DOI and it always resolves to the newest version. Where the exact behaviour matters, name the version you ran as well: version 1.12.2 is https://doi.org/10.5281/zenodo.21953121. This package has changed behaviour at releases — read_phone at 0.15.0, group_qom at 1.0.0, to_rate at 1.2.2 — so which version produced a number is part of the method.
